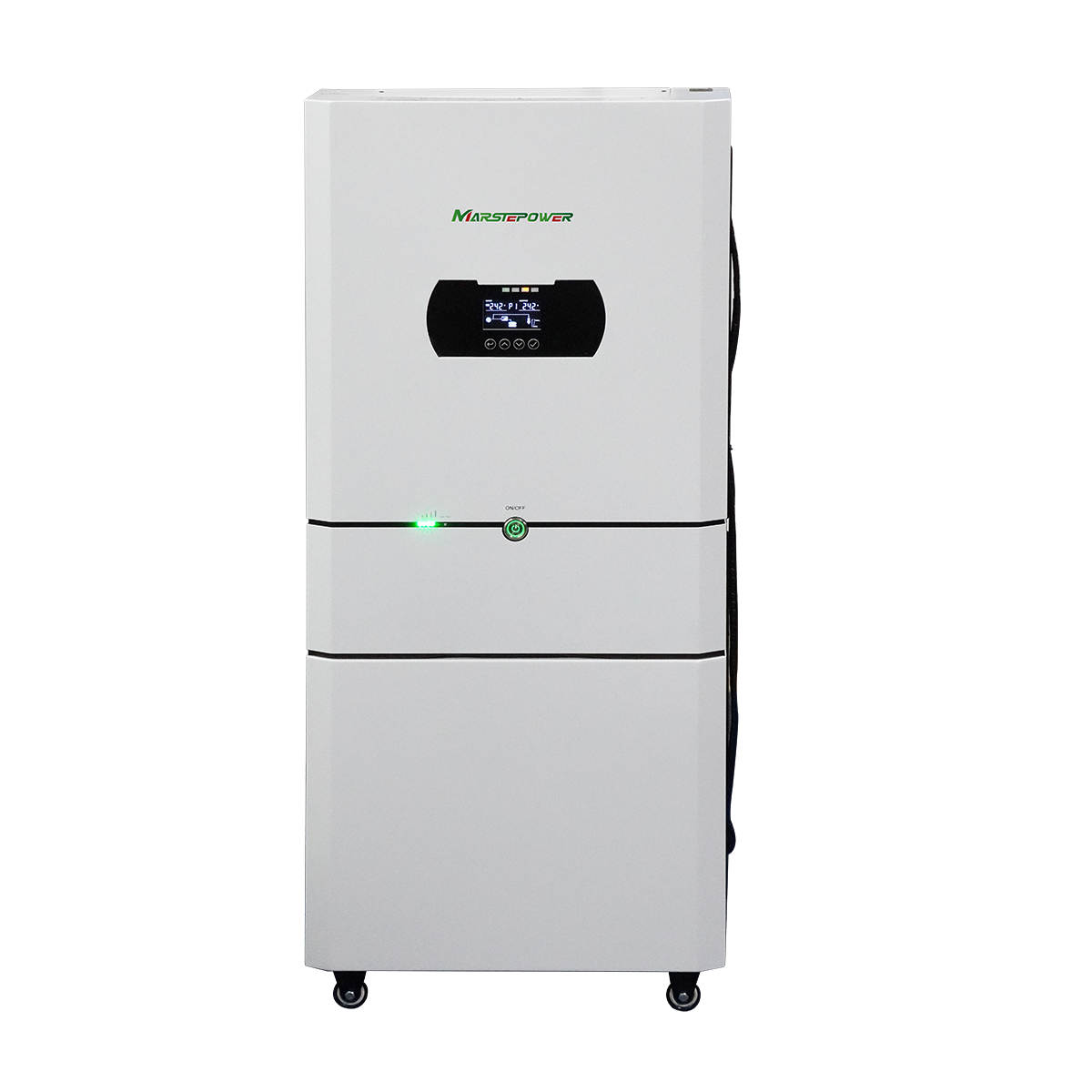

Industrial Frequency Inverter
MTP-10KW
Industrial Frequency Inverter

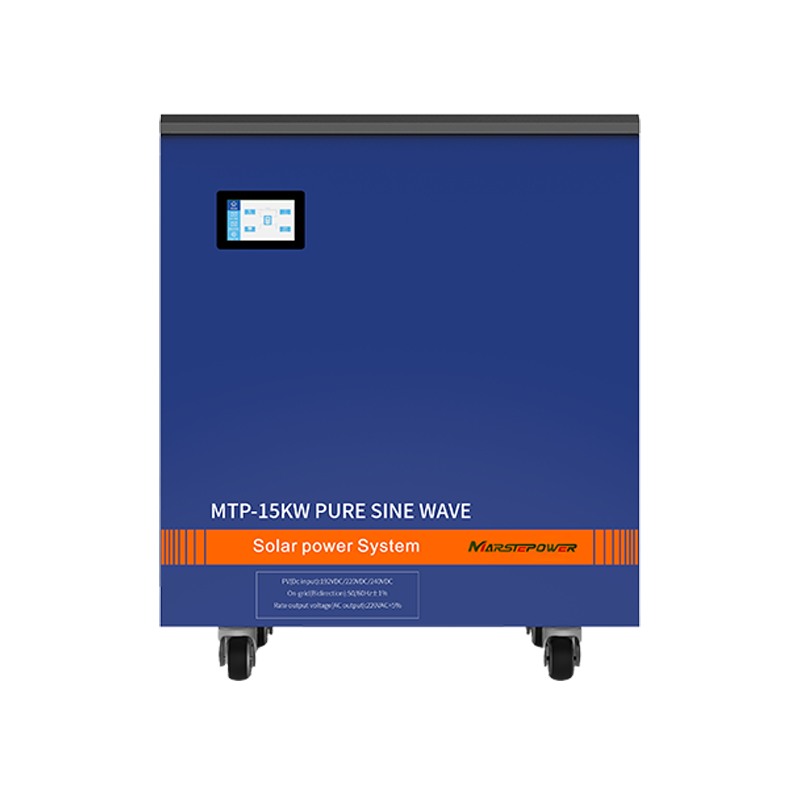

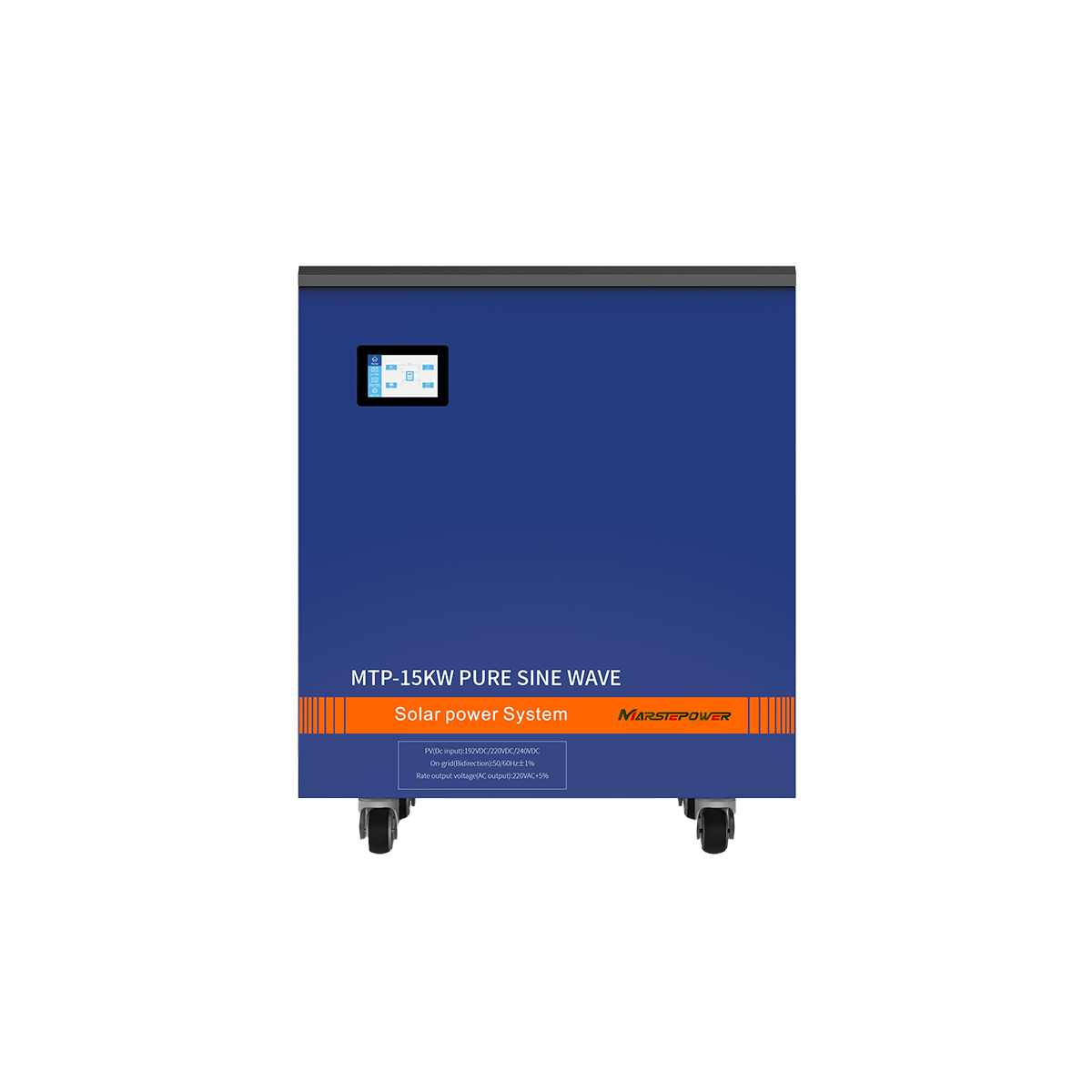

MTP-15KW
Industrial Frequency Inverter

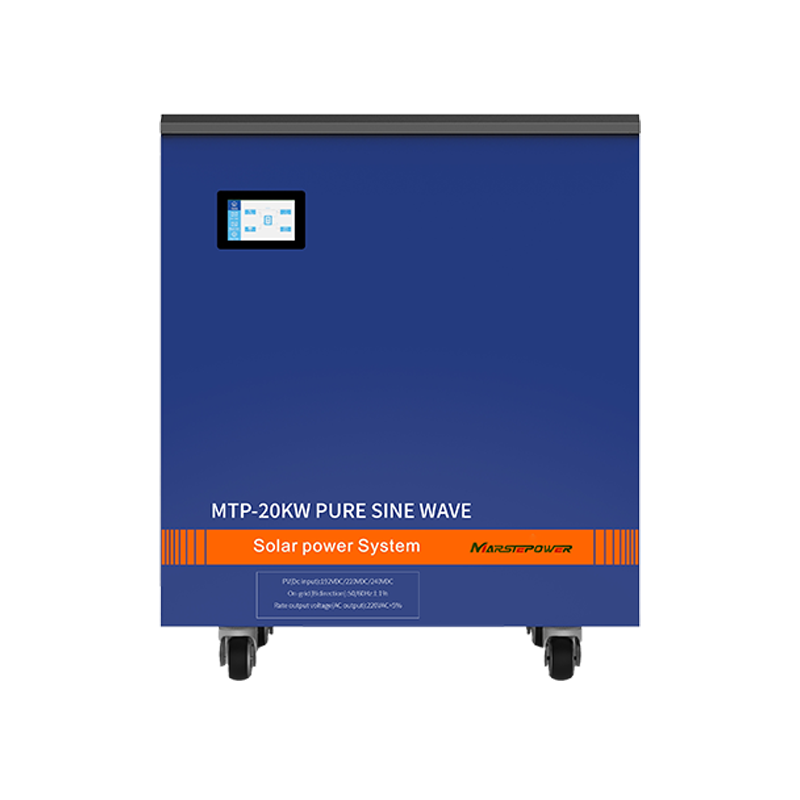

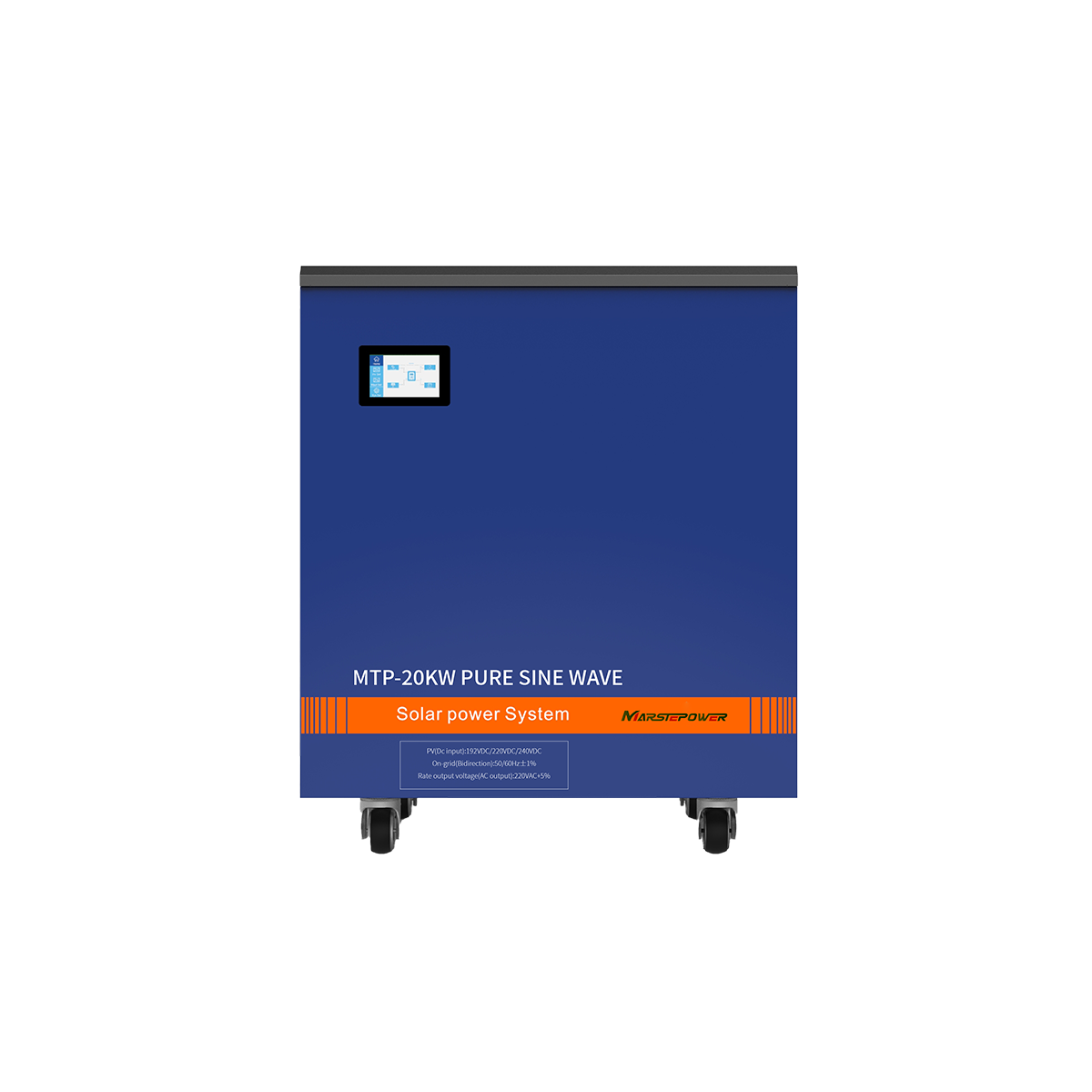

MTP-20KW
Industrial Frequency Inverter

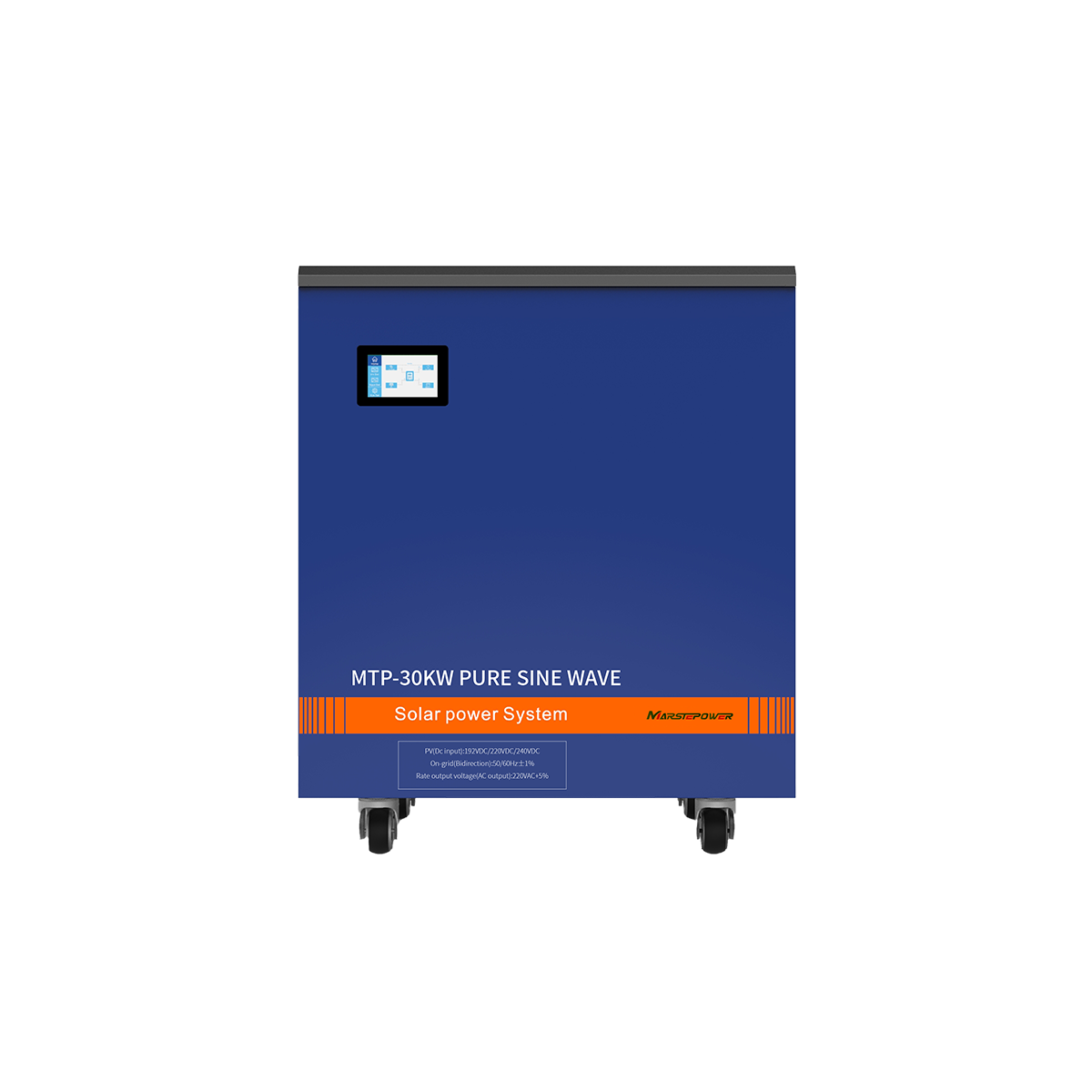

MTP-30KW
Product Specifications
| Industrial Frequency Inverter | MTP-10KW | MTP-15KW | MTP-20KW | MTP-30KW | |
| PV(Dc Input) | Recommended max.PV input power | 10000W | 15000W | 20000W | 30000W |
| Max.input voltage(Voc) | 240V | 240V | 154V | 154V | |
| PWM/MPPT operating voltage range | 260VDC-420VDC | 260VDC-420VDC | 260VDC-420VDC | 260VDC-420VDC | |
| Number of MPPT | 1 | 1 | 1 | 1 | |
| Max. number of input strings per MPPT | 1 | 1 | 1 | 1 | |
| Max. input current per MPPT | 50A | 50A | 50A | 50A | |
| Max.short-circuit current per MPPT | 52A | 52A | 52A | 52A | |
| On-Grid(Bidirection) | Max input power | 192VDC:1 road 10KW,2 roads 10KW
220VDC:1 road 11.5KW,2 roads 11.5KW 240VDC:1 road 12.5KW,2 roads 12.5KW |
192VDC:1 road 10KW,2 roads 10KW
220VDC:1 road 11.5KW,2 roads 11.5KW 240VDC:1 road 12.5KW,2 roads 12.5KW |
192VDC:1 road 10KW,2 roads 10KW
220VDC:1 road 11.5KW,2 roads 11.5KW 240VDC:1 road 12.5KW,2 roads 12.5KW |
192VDC:1 road 10KW,2 roads 10KW
220VDC:1 road 11.5KW,2 roads 11.5KW 240VDC:1 road 12.5KW,2 roads 12.5KW |
| Max input current | 50A | 50A | 50A | 50A | |
| Rated grid voltage | 220VAC±20% | 220VAC±20% | 220VAC±20% | 220VAC±20% | |
| Rated grid frequency | 50/60Hz±5% | 50/60Hz±5% | 50/60Hz±5% | 50/60Hz±5% | |
| Acceptable range | 220VAC±20% | 220VAC±20% | 220VAC±20% | 220VAC±20% | |
| Battery parameter (Bidirection) | Battery type | Lead-acid | Lead-acid | Lead-acid | Lead-acid |
| Battery voltage range | 192/220/240VDC | 192/220/240VDC | 192/220/240VDC | 192/220/240VDC | |
| Rate Battery Voltage | 192VDC/220VDC/240VDC | 192VDC/220VDC/240VDC | 192VDC/220VDC/240VDC | 192VDC/220VDC/240VDC | |
| Max.charge current | 60A | 60A | 60A | 60A | |
|
Back-up Output (AC Output) |
Rated output power | 10000W/10kva | 15000W/15kva | 20000W/20kva | 30000W/30kva |
| Rated output current | 48VDC | 48VDC | 48VDC | 48VDC | |
| Rate output Voltage | 220VAC±20% | 220VAC±20% | 220VAC±20% | 220VAC±20% | |
| Frequency | 50/60Hz±1% | 50/60Hz±1% | 50/60Hz±1% | 50/60Hz±1% | |
| Surge power | 2400VA 2s | 3600VA 2s | 4800VA 2s | 7200VA 2s | |
| THDv (@ linear load) | <±5% | <±5% | <±5% | <±5% | |
| Switching time | <10ms | ||||
| Efficiency | Peak efficiency | 96.5% | 96.5% | 96.5% | 96.5% |
| Max.MPPT efficiency | 90% | 90% | 90% | 90% | |
| Protection | Inner protection | √Output short-circuit protection √Output overvoltage protection √Output low voltage protection √Output Battery Low Protection | |||
| Surge protection | PV: Type III, AC: Type III | ||||
| IP rating | IP21/IP54 | ||||
| General Parameters | Operating temperature range | -10℃~40℃ | |||
| Relative humidity range | 20%~93% | 20%~93% | 20%~93% | 20%~93% | |
| Max. operating altitude | <1000m derating | <1000m derating | <1000m derating | <1000m derating | |
| Standby self-consumption | 1000W | 1500W | 2000W | 3000W | |
| Installation type | Vertical | Vertical | Vertical | Vertical | |
| Cooling mode | Fan cooling | Fan cooling | Fan cooling | Fan cooling | |
| communication | RS232/RS485/Dry contact | RS232/RS485/Dry contact | RS232/RS485/Dry contact | RS232/RS485/Dry contact | |
| Display | LCD | LCD | LCD | LCD | |
| Mechanical Specifications | Inverter dimensions (L*W*H)(mm) | 536*560*1015 | 536*560*1015 | 536*560*1015 | 635*566*1295 |
| Net weight (kg) | 135 | 174 | 195 | 240 | |
| Carton dimensions (L*W*H)(mm) | 675*700*1180 | 675*700*1180 | 675*700*1180 | 760*690*1540 | |
| Gross weight (kg) | 145 | 185 | 215 | 257 | |
| Warranty Period | 2/3Years | ||||
