Industrial Frequency Inverter
MTP-0.8KW
Industrial Frequency Inverter
MTP-1.2KW

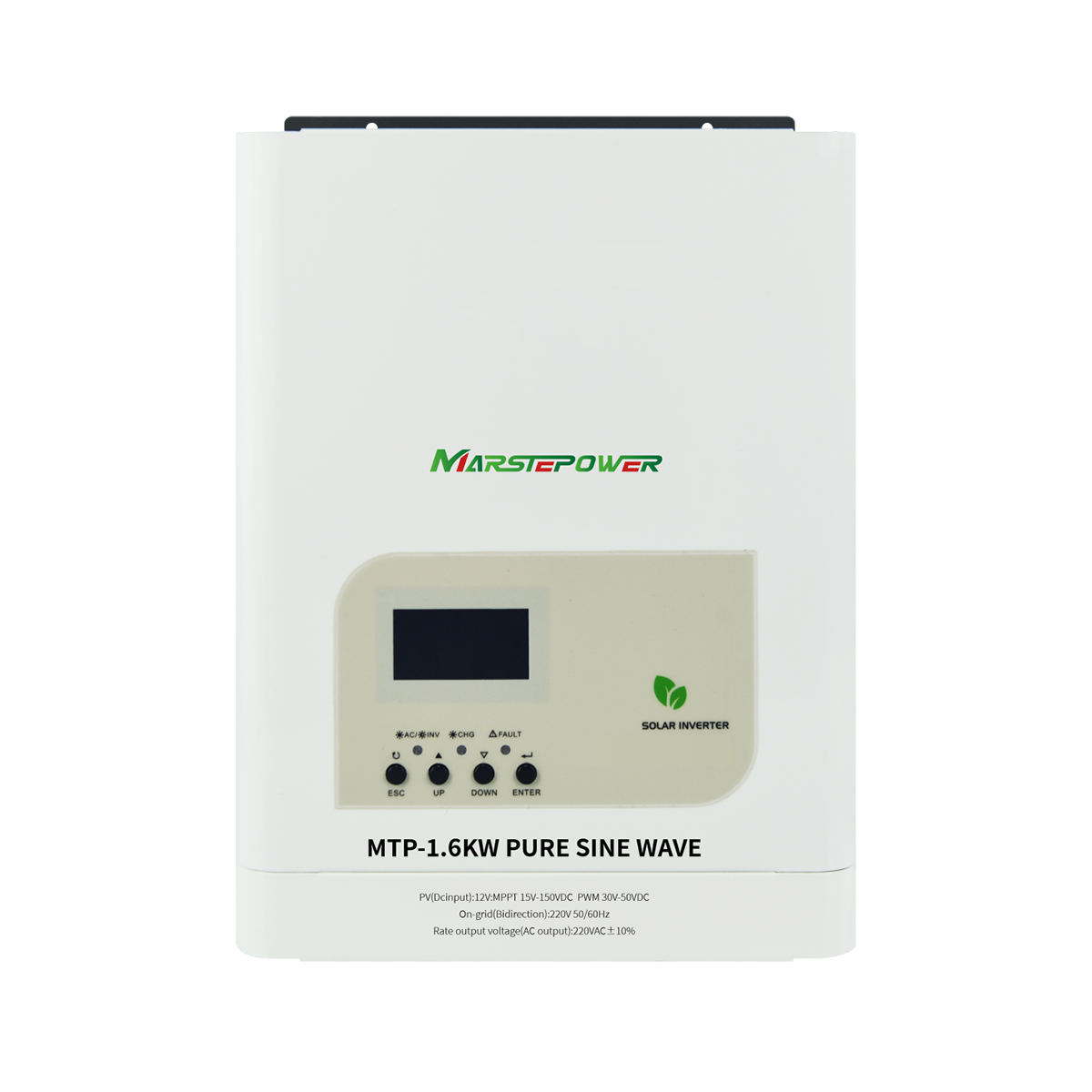

Industrial Frequency Inverter
MTP-1.6KW
Industrial Frequency Inverter
MTP-2.4KW
Product Specifications
| Industrial Frequency Inverter | MTP-0.8KW | MTP-1.2KW | MTP-1.6KW | MTP-2.4KW | |
| PV(Dc Input) | Recommended max.PV input power | 800W | 1200W | 1600W | 2400W |
| Max.input voltage(Voc) | 154V | 154V | 154V | 154V | |
| PWM/MPPT operating voltage range | 12V: PWM 15V-50VDC
24V: PWM 30V-105VDC |
12V: PWM 15V-50VDC
24V: PWM 30V-105VDC |
12V: MPPT 15V-150VDC
PWM 30V-105VDC |
12V: MPPT 15V-150VDC
PWM 30V-105VDC |
|
| Number of MPPT | 0 | 0 | 1 | 1 | |
| Max. number of input strings per MPPT | 0 | 0 | 1 | 1 | |
| Max. input current per MPPT | 60A | 60A | 60A | 60A | |
| Max.short-circuit current per MPPT | 27A | 27A | 27A | 27A | |
| On-Grid(Bidirection) | Max input power | 1000W | 1500W | 2000W | 3000W |
| Max input current | <6.5A | <10A | <13A | <20A | |
| Rated grid voltage | 220VAC±10% | 220VAC±10% | 220VAC±10% | 220VAC±10% | |
| Rated grid frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Acceptable range | 154-264Vac (For UPS):
185-264Vac (For Home Appliances) |
154-264Vac (For UPS):
185-264Vac (For Home Appliances) |
154-264Vac (For UPS):
185-264Vac (For Home Appliances) |
154-264Vac (For UPS):
185-264Vac (For Home Appliances) |
|
| Battery parameter (Bidirection) | Battery type | LiFePO4/Lead-acid | LiFePO4/Lead-acid | LiFePO4/Lead-acid | LiFePO4/Lead-acid/water cell |
| Battery voltage range | 10~14.5V | 10~14.5V | 20-30V | 20-30V | |
| Rate Battery Voltage | 12/24VDC | 12/24VDC | 12/24VDC | 12/24/48VDC | |
| Max.charge current | 60A | 60A | 60A | 60A | |
|
Back-up Output (AC Output) |
Rated output power | 800W/1000VA | 1200W/1500VA | 1600W/2000VA | 2400W/3000VA |
| Rated output current | 12/24VDC | 12/24VDC | 12/24VDC | 12/24/48VDC | |
| Rate output Voltage | 220VAC±10% | 220VAC±10% | 220VAC±10% | 220VAC±10% | |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Surge power | 2400VA 2s | 3600VA 2s | 4800VA 2s | 7200VA 2s | |
| THDv (@ linear load) | <3% | <3% | <3% | <3% | |
| Switching time | 10ms typical (For UPS) 20ms typical(For Home Appliances) | ||||
| Efficiency | Peak efficiency | 95% | 95% | 95% | 95% |
| Max.MPPT efficiency | 93% | 93% | 92% | 92% | |
| Protection | Inner protection | √Output short-circuit protection √Output overvoltage protection √Output low voltage protection | |||
| Surge protection | PV: Type III, AC: Type III | ||||
| IP rating | IP20 | ||||
| General Parameters | Operating temperature range | -10℃~50℃ | |||
| Relative humidity range | 5%~95% | 5%~95% | 5%~95% | 5%~95% | |
| Max. operating altitude | >2000m derating | >2000m derating | >2000m derating | >2000m derating | |
| Standby self-consumption | 10W | 15W | 20W | 30W | |
| Installation type | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | |
| Cooling mode | Fan cooling | Fan cooling | Fan cooling | Fan cooling | |
| communication | RS232 | RS232 | RS232/RS485 | RS232/RS485 | |
| Display | LED | LED | LED | LED | |
| Mechanical Specifications | Inverter dimensions (L*W*H)(mm) | 345*254*105 | 345*254*105 | 490*312*125 | 490*312*125 |
| Net weight (kg) | 7.14 | 8.98 | 13.53 | 15.56 | |
| Carton dimensions (L*W*H)(mm) | 435*330*180 | 435*330*180 | 557*382*195 | 557*382*195 | |
| Gross weight (kg) | 8.11 | 10.09 | 14.88 | 16.78 | |
| Warranty Period | 1 Years | ||||
