MTS SERIES

LiFePO₄ Battery Technology

Wall/Floor-Mount &Stack-Based Lithium Battery

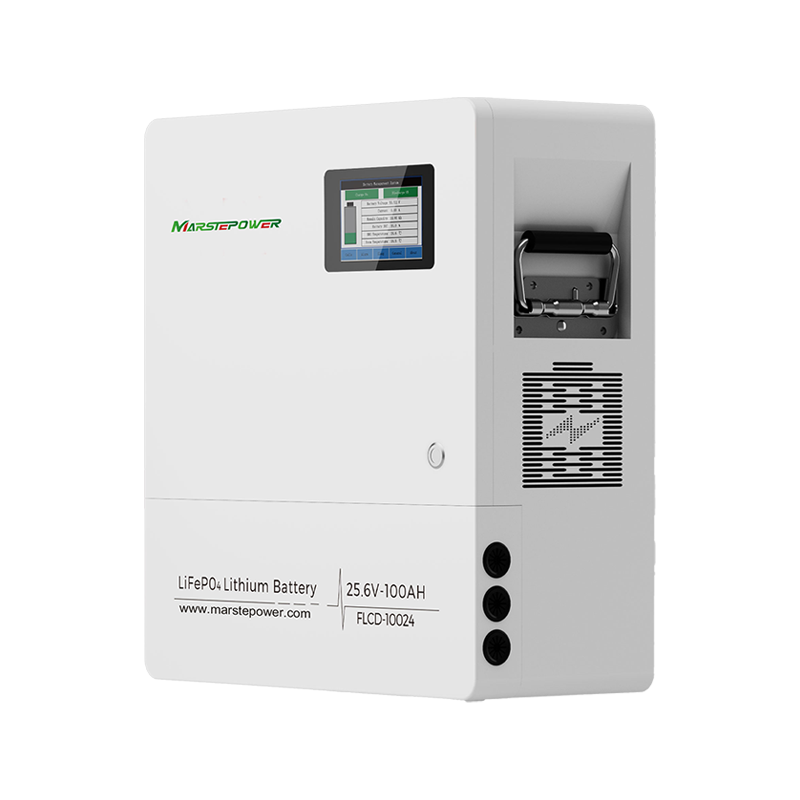

MTS25.6-100

MTS SERIES

LiFePO₄ Battery Technology

Wall/Floor-Mount &Stack-Based Lithium Battery

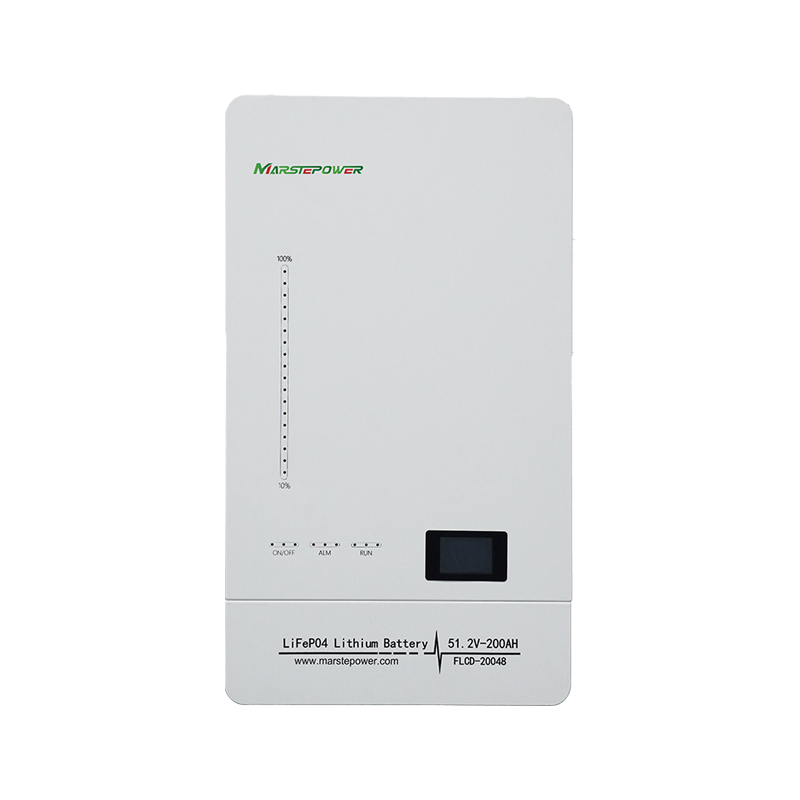

MTS51.2-200

MTS SERIES

LiFePO₄ Battery Technology

Wall/Floor-Mount &Stack-Based Lithium Battery

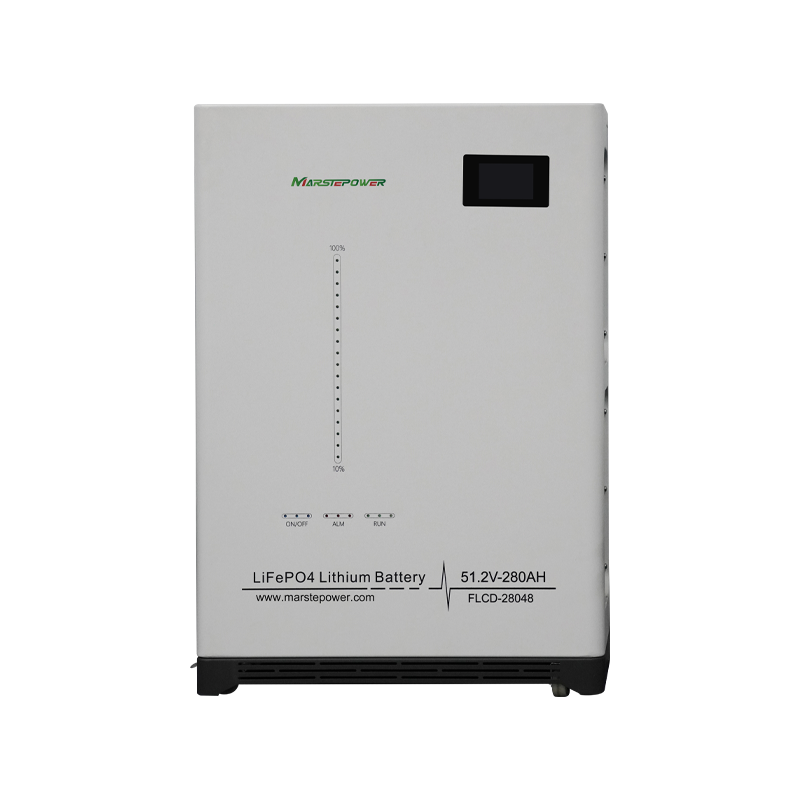

MTS51.2-280

Product Features

Long Cycle Life

6000 Cycles (25°C, 80% DOD) for effectively lower total of ownership cost

Quickly Recharge

Save time and increase productivity with less downtime thanks to superior charge/discharge efficiency

Longer Service Life

Low maintenance batteries with stable chemistry

Extreme Heat Tolerance

Suitable for use in a wider range of applications whereambient temperature is unusually high: up to +60°C

Built in Circuit Protection

Battery Management System (BMS) is incorporated against abuse

Better Storage

Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation

Light Weight

Lithium batteries offer a higher Wh/kg ratio whileweighing up to one-third less than their equivalent SLA counterparts.

Application

Base Stations Telecommunications

Solar&Wind Energy Storage

UPS

Data Center

Electric Power Systems

All-purpose

Product Specifications

MARSTE Wall/Floor-Mount lithium battery is engineered with utmost reliability, utilizing Grade A cells to ensure extended cycle life and unwavering performance. These battery packs feature an advanced Battery Management System (BMS) that not only elevates system efficiency but also extends the battery’s lifespan while prioritizing safety.

Designed to provide a wide array of household applications, including PV self-consumption, backup power, load shifting, and off-grid solutions, this battery is a versatile choice. With its outstanding safety record, high energy density, and impressive longevity, it stands as a dependable energy solution for your needs.

Last but not least, our lithium battery comes equipped with a user-friendly LCD display, allowing for convenient real-time monitoring of battery status. You can also seamlessly access vital information via its exceptional RS232/485 communication function when connected to a computer. Stay informed and in control with MARSTE’s Lithium Battery technology.

Battery Model	MTS25.6-100	MTS25.6-200	MTS51.2-100	MTS51.2-200	MTS51.2-280
Rated Voltage	25.6V	25.6V	51.2V	51.2V	51.2V
Rated Capacity	100Ah	200Ah	100Ah	200Ah	280Ah
Discharge Current	100A	150A	100A	200A	200A
Peak Discharge Current	300A	300A	300A	300A	300A
Voltage Cut off Discharge	22.4V	22.4V	44.8V	44.8V	44.8V
Charge Voltage	29.2V	29.2V	58.4V	58.4V	58.4V
Charge Current	20A	40A	20A	40A	56A
Weight (KG)	24.00	46.50	46.50	89.00	122.00
Dimenison(LWH)mm	370160400	370160600	370160600	500160850	460260780

*The MTS series range includes but is not limited to the above models! Please contact us for more information
