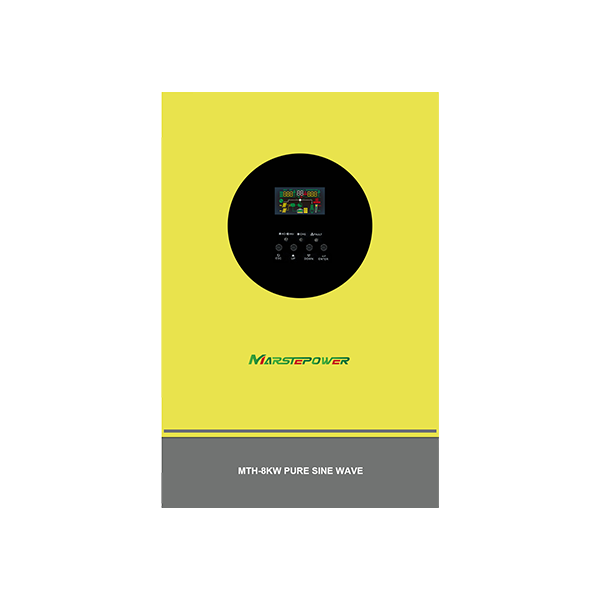

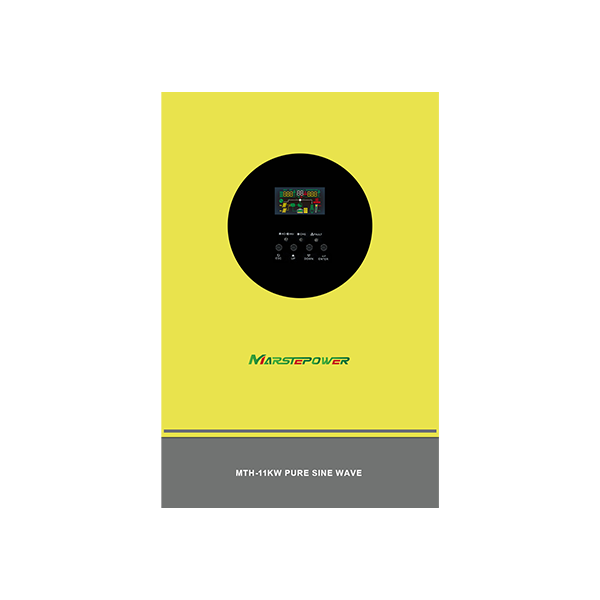

MTHB 6KW-8KW-11KW Built-in MPPT Parallel High Frequency Inverter

Product Specifications

High Frequency Inverter

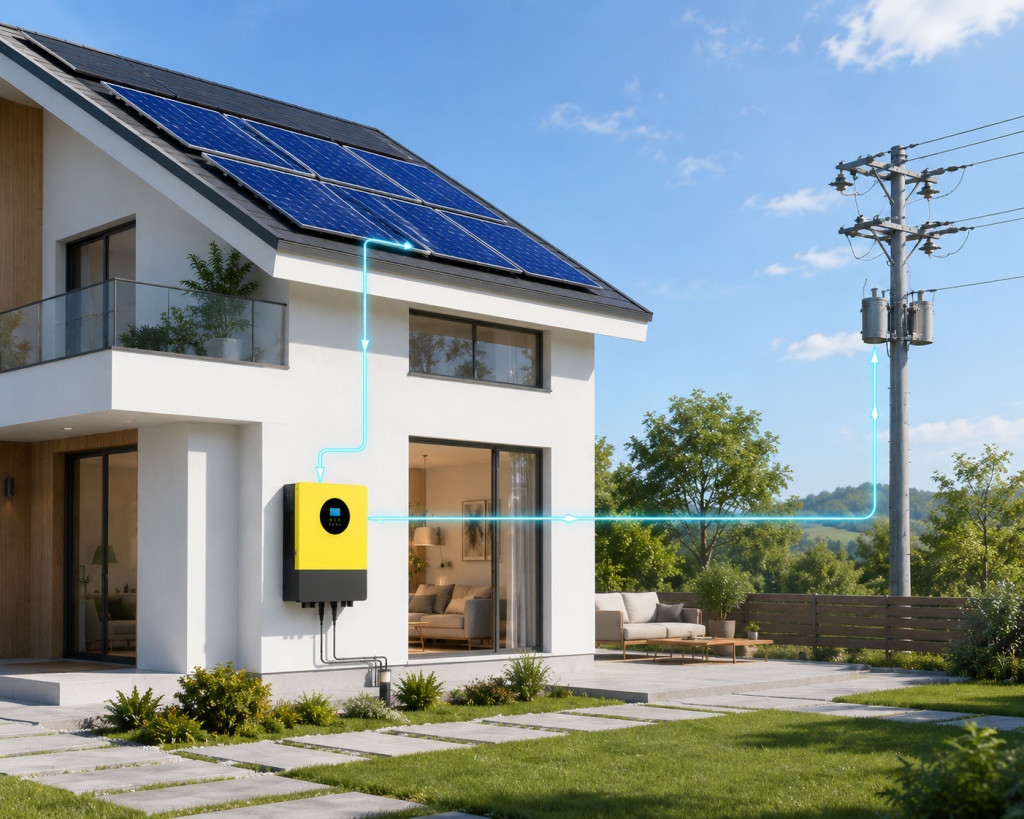

Grid & Off-Grid Running, Supports Battery Power Export

This unit supports both on-grid and off-grid operation and can export battery power to the grid. Its dual working modes let the inverter work even without batteries. When set to SUE or PEC mode, it stores energy and sends extra power to the grid. Two AC input circuits are equipped with automatic switching function.
It uses CT sensors to detect reverse current and manage power distribution automatically. The system prioritizes local power use, avoids power feeding back into the grid, and satisfies official power industry requirements.

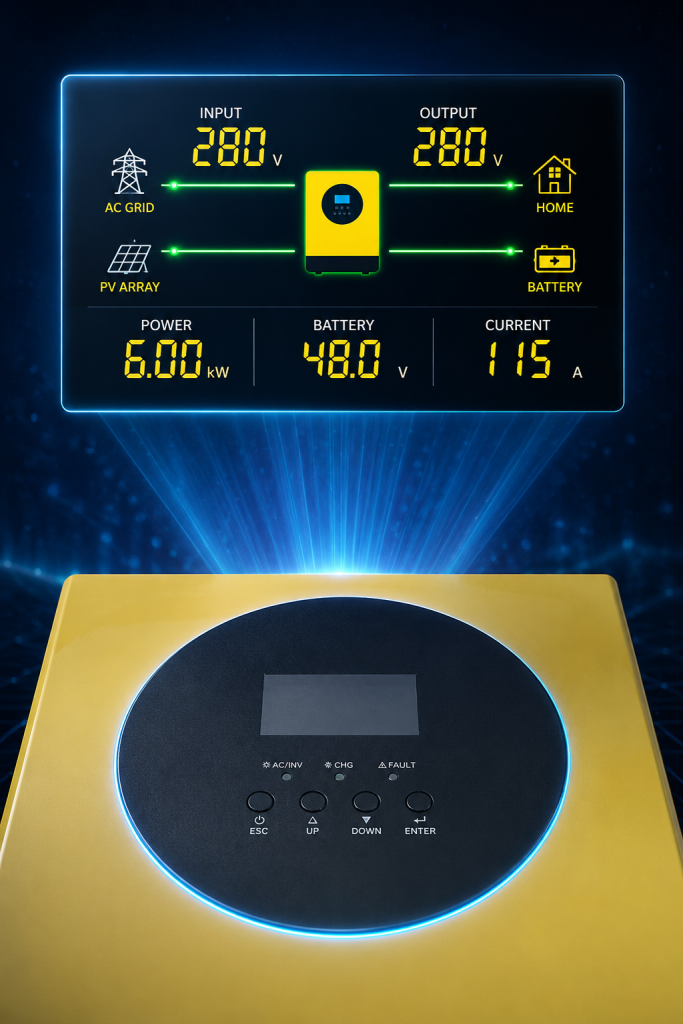

LCD Capacitive Touch Screen

Easy-to-use screen shows real-time current, voltage, power, energy and fault alerts.

High frequency inverter

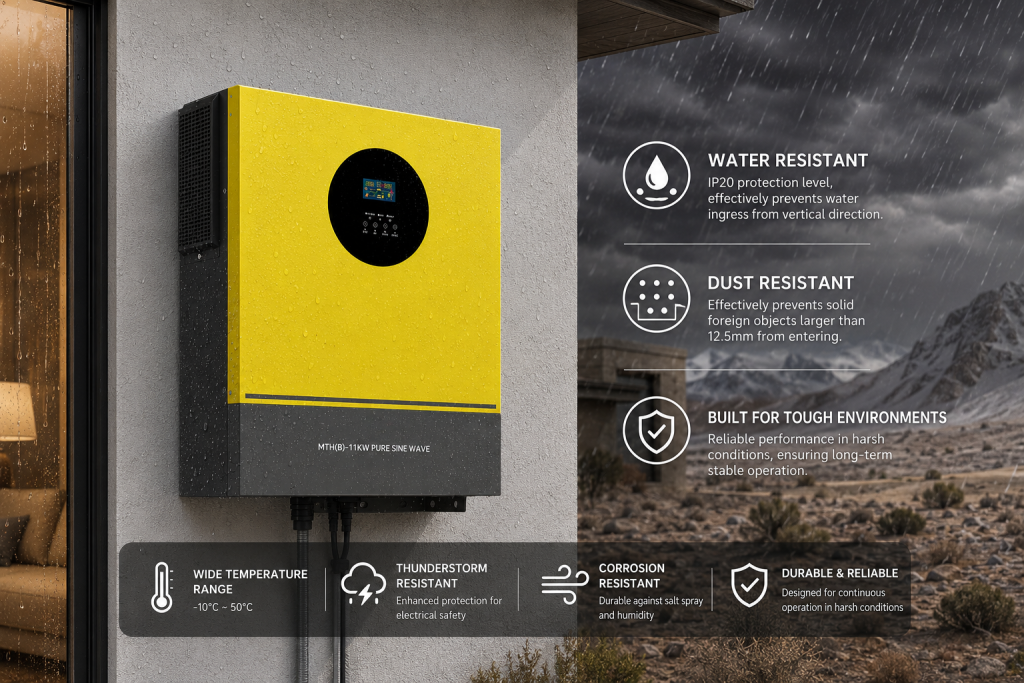

IP20 Protection Designed for Hard Outdoor Environments

Waterproof & dustproof build resists rain, wind, moisture, salt mist and washdown, keeping steady long-run performance.

High frequency parallel inverter		MTHB-6KW	MTHB-8KW	MTHB-11KW
PV(Dc Input)	Recommended max.PV input power	6200W	8600W	11000W
	Max.input voltage(Voc)	280V	280V	280V
	MPPT operating voltage range	60-500VDC	90-500VDC	90-500VDC
	Number of MPPT	1	2	2
	Max. number of input strings per MPPT	1	2	2
	Max. input current per MPPT	27A	27A/27A	27A/27A
	Max.short-circuit current per MPPT	27A	27A	27A
Grid(AC Input)	Max input power	8500W	2x6500W	2x6500W
	Max input current	27A	27A/27A	27A/27A
	Rated grid voltage	220/230/240VAC	220/230/240VAC	220/230/240VAC
	Rated grid frequency	50/60Hz	50/60Hz	50/60Hz
	Acceptable range	(Normal Mode):90-280Vac (UPS Mode):170-280Vac	(Normal Mode):90-280Vac (UPS Mode):170-280Vac	(Normal Mode):90-280Vac (UPS Mode):170-280Vac
	Standard output current	26.9A	37.4A	47.8A
Battery parameter (Bidirection)	Battery type	LiFePO4/Lead-acid	LiFePO4/Lead-acid	LiFePO4/Lead-acid
	Battery voltage range	56.4VDC	56.4VDC	56.4VDC
	Rate Battery Voltage	48VDC	48VDC	48VDC
	Max.charge current	120A	150A	150A
Back-up Output (AC Output)	Rated output power	6200W/12400VA	8600W/17200VA	11000W/22000VA
	Rated output current	48VDC	48VDC	48VDC
	Rate output Voltage	220/230/240VAC±5%	220/230/240VAC±5%	220/230/240VAC±5%
	Frequency	50/60Hz	50/60Hz	50/60Hz
	Surge power	12400VA 2s	17200VA 2s	22000VA 2s
	THDv (@ linear load)	<3%	<3%	<3%
	Switching time	10ms typical (For UPS) 20ms typical(For Home Appliances)
Efficiency	Peak efficiency	95%	95%	95%
Efficiency	Max.MPPT efficiency	92%	92%	92%
Protection	Inner protection	√Output short-circuit protection √Output overvoltage protection √Output low voltage protection
	Surge protection	PV: Type III, AC: Type III
	IP rating	IP20
General Parameters	Operating temperature range	-10℃~50℃
	Relative humidity range	20%~95%	20%~95%	20%~95%
	Max. operating altitude	>1000m derating	>1000m derating	>1000m derating
	Standby self-consumption	8W	8W	8W
	Installation type	Wall-mounted	Wall-mounted	Wall-mounted
	Cooling mode	Fan cooling	Fan cooling	Fan cooling
	communication	RS232	RS232	RS232
	Display	LCD	LCD	LCD
Mechanical Specifications	Inverter dimensions (LWH)(mm)	495312125	570.8500148.2	570.8500148.2
	Net weight (kg)	10.73	19.31	19.31
	Carton dimensions (LWH)(mm)	565385195	708570241	708570241
	Gross weight (kg)	12.14	22.6	22.6
	Warranty Period	2 Years
