FE72-18X(ND) Double Glass

Product Specifications

Electrical Characteristics

Module	FE72-18X(ND)
Maximum Power at STC (Pmax)	580W	585W	590W	595W	600W
Open – Circuit Voltage (Voc)	51.30V	51.50V	51.70V	51.85V	52.00V
Short – Circuit Current (Isc)	14.39A	14.47A	14.55A	14.62A	14.70A
Optimum Operating Voltage (Vmp)	43.10V	43.30V	43.50V	43.55V	43.70V
Optimum Operating Current (Imp)	13.47A	13.53A	13.59A	13.67A	13.73A
Module efficiency	22.5%	22.6%	22.8%	23.0%	23.2%
Power Tolerance	0~+3%
Maximum System Voltage	1500V DC(UL/IEC)
Maximum Series Fuse Rating	25A
Operating Temperature	-40℃to+85℃

*STC: Irradiance 1000W/mp², module temperature 25°C, AM=1.5

Optional black frame or white frame module according to customer requirements

NMOT

Module	FE72-18X+(ND)(Bifaciality 80±10%)
Maximum Power	441W	445W	449W	453W	457W
Open – Circuit Voltage (Voc)	49.20A	49.40A	49.60A	49.80A	50.00A
Short – Circuit Current (Isc)	11.60A	11.66A	11.73A	11.79A	11.86A
Optimum Operating Voltage (Vmp)	41.40V	41.60V	41.70V	41.90V	42.10V
Optimum Operating Current (Imp)	10.65A	10.70A	10.77A	10.82A	1089A
NMOT	45+2°C

* NMOT: Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s

Mechanical Characteristics

Solar Cells	Monocrystalline 182 x 91.875mm
No. of Cells	144 (6 x 24)
Dimensions	2278 x 1134 x 30mm
Weight	32.0±0.5kg
Glass (Front/Back)	High transmission tempered glass; thickness: 2.0mm
Frame	Anodized aluminium alloy
Junction Box	IP68
Cable	4mm² (UL/IEC); length: (+)400mm, (-)200mm / customized length
Connectors	MC4-EVO2/MC4 Compatible
Packaging Configuration	36 pcs/box, 720 pcs/40’HQ container

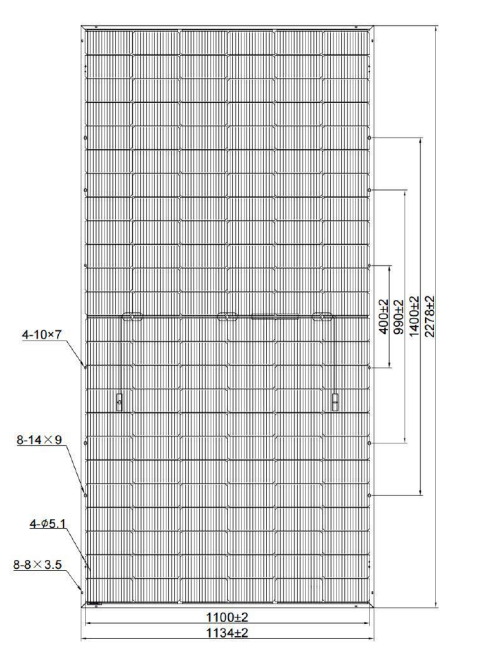

Engineering Drawing

Temperature Characteristics

Temperature Coefficient of Pmax	-0.29%/°C
Temperature Coefficient of Voc	-0.23%/°C
Temperature Coefficient of Isc	+0.046%/°C

Warranty

15 -years

product warranty

30 – years

warranty on power output

Specific information is referred to the product quality guarantee

The module recycling should be carried out by the professional institutions at the end of module life cycle

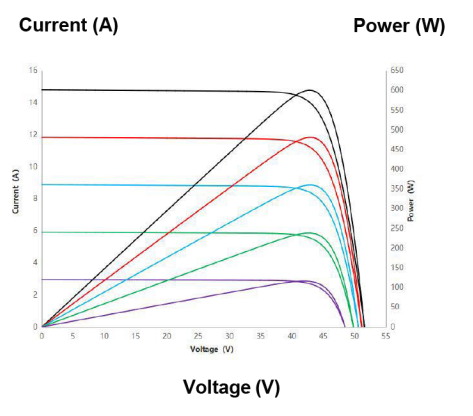

IV Curves
