FE54-18X(ND) Double Glass

Product Specifications

Electrical Characteristics

Module	FE54-18X(ND)
Maximum Power at STC (Pmax)	430W	435W	440W	445W	450W
Open – Circuit Voltage (Voc)	38.30V	38.40V	38.60V	38.70V	38.90V
Short – Circuit Current (Isc)	14.23A	14.31A	14.39A	14.47A	14.55A
Optimum Operating Voltage (Vmp)	31.90V	32.00V	32.20V	32.30V	32.50V
Optimum Operating Current (Imp)	13.50A	13.60A	13.68A	13.78A	13.85A
Module efficiency	22.0%	22.3%	22.5%	22.8%	23.0%
Power Tolerance	0~+3%
Maximum System Voltage	1500V DC(UL/IEC)
Maximum Series Fuse Rating	25A
Operating Temperature	-40℃to+85℃

*STC: Irradiance 1000W/mp², module temperature 25°C, AM=1.5

Optional black frame or white frame module according to customer requirements

NMOT

Module	FE54-18X+(ND)(Bifaciality 80±10%)
Maximum Power	327W	331W	335W	339W	343W
Open – Circuit Voltage (Voc)	36.80A	36.90A	37.10A	37.20A	37.40A
Short – Circuit Current (Isc)	11.47A	11.53A	11.59A	11.65A	11.71A
Optimum Operating Voltage (Vmp)	30.70V	30.90V	31.10V	31.30V	31.50V
Optimum Operating Current (Imp)	10.65A	10.71A	10.77A	10.83A	10.89A
NMOT	45+2°C

* NMOT: Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s

Mechanical Characteristics

Solar Cells	Monocrystalline 182 x 91.875mm
No. of Cells	108 (6 x 18)
Dimensions	1722 x 1134 x 30mm
Weight	24.0±0.5kg
Glass (Front/Back)	High transmission tempered glass; thickness: 2.0mm
Frame	Anodized aluminium alloy
Junction Box	IP68
Cable	4mm² (UL/IEC); length: (+)400mm, (-)200mm / customized length
Connectors	MC4-EVO2/MC4 Compatible
Packaging Configuration	36 pcs/box, 936 pcs/40’HQ container

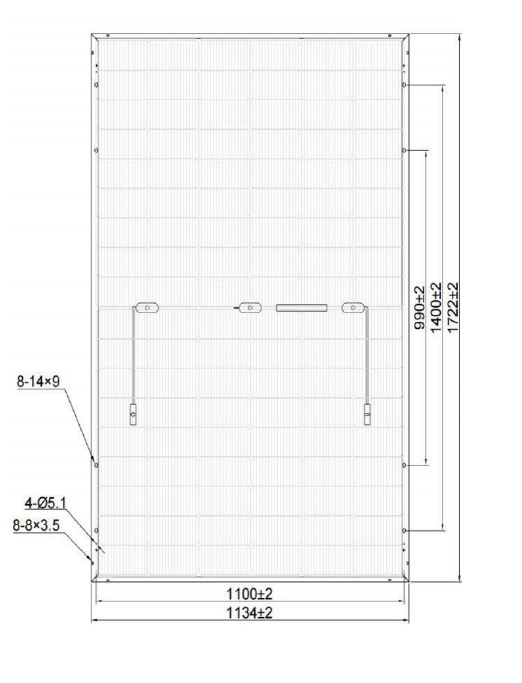

Engineering Drawing

Temperature Characteristics

Temperature Coefficient of Pmax	-0.29%/°C
Temperature Coefficient of Voc	-0.23%/°C
Temperature Coefficient of Isc	+0.046%/°C

Warranty

15 -years

product warranty

30 – years

warranty on power output

Specific information is referred to the product quality guarantee

The module recycling should be carried out by the professional institutions at the end of module life cycle

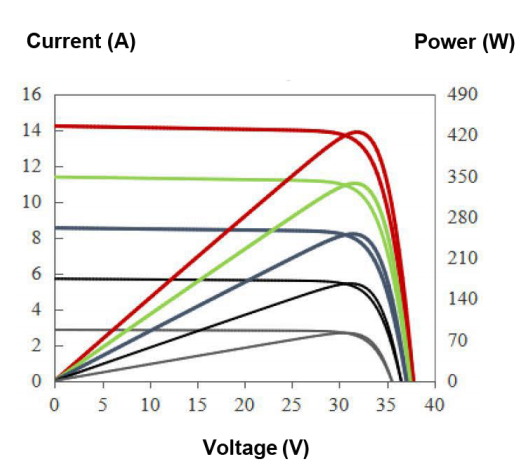

IV Curves
