FE48-18X+(ND) Double Glass

Product Specifications

Electrical Characteristics

Module	FE48-18X+(ND)
Maximum Power at STC (Pmax)	440W	445W	450W	455W	460W
Open – Circuit Voltage (Voc)	35.30V	35.50V	35.70V	35.90V	36.10V
Short – Circuit Current (Isc)	15.89A	15.97A	16.05A	16.13A	16.20A
Optimum Operating Voltage (Vmp)	29.45V	29.60V	29.75V	29.90V	30.05V
Optimum Operating Current (Imp)	14.95A	15.04A	15.13A	15.22A	15.31A
Module efficiency	22.0%	22.3%	22.5%	22.8%	23.0%
Power Tolerance	0~+3%
Maximum System Voltage	1500V DC(UL/IEC)
Maximum Series Fuse Rating	35A
Operating Temperature	-40℃to+85℃

*STC: Irradiance 1000W/mp², module temperature 25°C, AM=1.5

Optional black frame or white frame module according to customer requirements

NMOT

Module	FE48-18X+(ND)(Bifaciality 80±10%)
Maximum Power	332W	336W	340W	344W	347W
Open – Circuit Voltage (Voc)	33.30A	33.50A	33.60A	33.80A	34.00A
Short – Circuit Current (Isc)	12.83A	12.89A	12.96A	13.02A	13.08A
Optimum Operating Voltage (Vmp)	27.50V	27.60V	27.80V	28.00V	28.10V
Optimum Operating Current (Imp)	12.07A	12.16A	12.22A	12.28A	12.43A
NMOT	45+2°C

* NMOT: Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s

Mechanical Characteristics

Solar Cells	Monocrystalline 182 x 105mm
No. of Cells	96 (6 x 16)
Dimensions	1762 x 1134 x 30mm
Weight	23.0±0.5kg
Glass (Front/Back)	High transmission coated tempered glass; thickness: 2.0mm
Frame	Anodized aluminium alloy
Junction Box	IP68
Cable	4mm² (UL/IEC); length: (+)400mm, (-)200mm / customized length
Connectors	MC4-EVO2/MC4 Compatible
Packaging Configuration	36 pcs/box, 720 pcs/40’HQ container

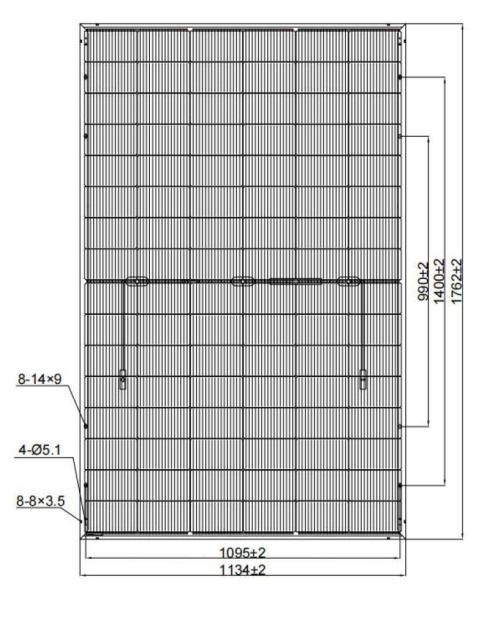

Engineering Drawing

Temperature Characteristics

Temperature Coefficient of Pmax	-0.29%/°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Isc	+0.046%/°C

Warranty

15 -years

product warranty

30 – years

warranty on power output

Specific information is referred to the product quality guarantee

The module recycling should be carried out by the professional institutions at the end of module life cycle

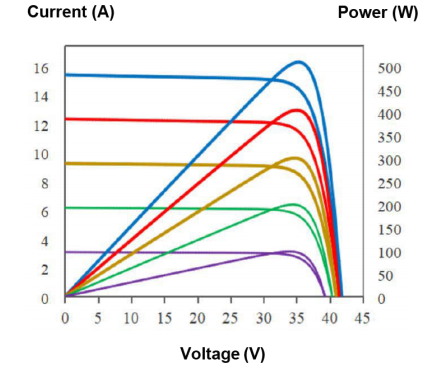

IV Curves
